2. Neural Networks with Keras#

First things first, I’m a realist…

I added instructions to install Tensorflow and Keras (it doesn’t come pre-packaged with Anaconda). I’m assuming some have yet to do that, and these packages take time to install.

Try to run the code block below. If it gives an error that Tensorflow or Keras aren’t found, you’ll need to install those packages. Uncomment the first line in the code block below and run it again.

While that’s happening, we’ll go over some background and vocabulary relating to neural networks.

#!conda install tensorflow keras

from keras.datasets import fashion_mnist
# Load the Fashion-MNIST dataset
(x_train, y_train), (x_test, y_test) = fashion_mnist.load_data()

2.1. What are Neural Networks?#

Neural networks are machine learning models (loosely) inspired by the structure of the human brain. Neural networks can be implemented for regression and classification tasks and are widely used in complex tasks such as image and speech processing, language translation, time-series modeling and forecasting, and anomaly detection. There are numerous variants of neural networks. Some notable examples:

  • Multi-layer Percpetron (MLP) - the vanilla neural network we’ll use today

  • Convolutional Neural Network (CNN) - are largely used in image and video processing, but can also be applied to time-series and forecasting problems

  • Recurrent Neural Network (RNN) - used for time-series modeling and forecasting

  • Long- Short-Term Memory Neural Network (LSTM) - an upgrade of RNN. This was the cutting edge of natural language processing before transformers (as in Generative Pre-trained Transformer) ushered in the age of LMMs.

  • Generative Adversarial Networks (GANs) - used for generating novel data (i.e. a genAI model) and fraud detection. GANs comprise parallel neural networks, a generator (creating fake instances of data) and discriminator (trained to detect real data from fake).

2.2. Why Neural Networks over other models? The PROs.#

  • Ability to model complex nonlinear relationships: Neural networks can automatically learn and represent intricate, nonlinear patterns between inputs and outputs, which many traditional models (like linear regression) cannot do without extensive manual feature engineering.

  • Handling of high-dimensional and unstructured data: NNs excel at processing large-scale, high-dimensional data (e.g. images, audio, and text) where other models often struggle.

  • Feature extraction and automatic feature engineering: NNs ‘discover’ and construct relevant features from raw data, reducing the need for manual intervention and domain expertise in feature selection.

  • Adaptability in deployment: NNs adapt to new data and improve performance over time, making them suitable for dynamic, real-world applications.

2.3. Why not Neural Networks? The CONs.#

  • Require large amounts of data: NNs have many many parameters, so they typically need thousands to millions of labeled examples to perform well. For smaller data sets, other ML models are more suitable.

  • Lack interpretability (“black box”): For most NNs (especially deep NNs), we cannot gleen meaning from the parameters.

  • High computational cost: Training neural networks, especially deep NNs, demands significant computational resources (powerful GPUs/TPUs) and can take much longer than training traditional models. Many such models are trained on remote cloud computing servers (pay per compute).

  • Risk of overfitting: Neural networks, with their large number of parameters, are prone to overfitting if not properly regularized, especially when trained on small or noisy datasets.

  • Complexity in development and tuning: Designing, training, and tuning neural networks (e.g., choosing architecture, hyperparameters) is often more complex and time-consuming than working with traditional models, which generally have fewer parameters and simpler structures.

2.4. Neural Network Anatomy and The Multi-Layer Perceptron#

The term perceptron has two common usages: a single artificial neuron or several artificial neurons arranged in a single layer. Either way, a perceptron is a sort of building block for more complex neural networks.

First, let’s consider the single ‘neuron’ interpretation.

perceptron, by Adam Weaver

In the diagram above, each input feature is assigned a weight (parameters) and a weighted sum of features and a bias term are fed through some non-linear activation function. The diagram above can be represented by the following equation:

\[ \hat{y} = f(b + w_0 \cdot x_0 + w_1 \cdot x_1+ w_2 \cdot x_2 + w_3 \cdot x_3) \]

2.4.1. Activation Functions#

Every perceptron that comprises a neural network has some activation function. Activiation functions are non-linear and without them, a neural network (regardless of size) could be reduced to a single linear neuron. These activation functions make it that for any given region of the feature space, only some neurons will participate and others will be dormant. So the feature space is parsed by different subsets of neurons.

Some example activation functions are:

  • Heaviside function - step function

  • Sigmoid function - same as logit function from logistic regression

  • Rectifying Linear Unit (ReLu) - linear for positive values and zero otherwise. This is the most common activation function.

  • Tanh - hyperbolic tangent function, similar to sigmoid but ranges -1 to 1.

2.4.2. Multi-Layer Perceptron (the vanilla NN)#

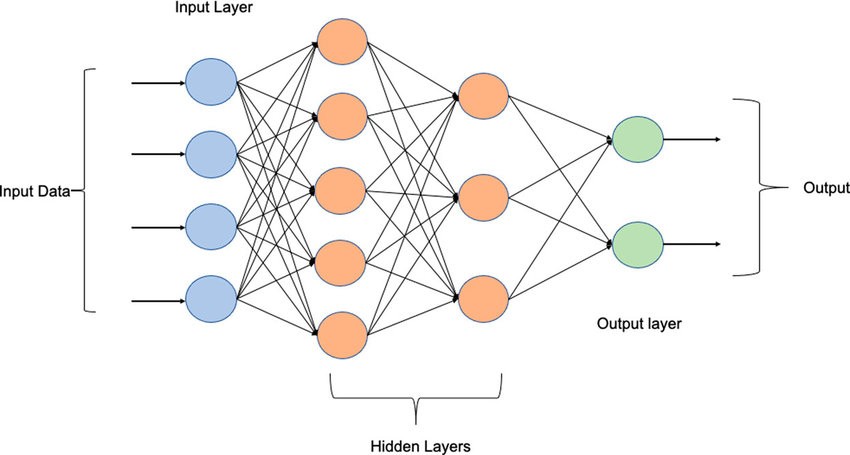

MLP, Kishgore NG

A MLP comprises layers of perceptrons and each layer may itself contain numerous perceptrons. In this diagram, every neuron in one layer projects onto every neuron in the subsequent layer. These are called dense layers.

Generally, in densely connected NNs, each perceptron in a layer is the same (same number of parameters and same activation function).

Glossary:

  • Input layer - This layer accepts the features

  • Hidden layer - layers of perceptrons between input and output. Deep Neural Networks refer to NNs with many hidden layers. In the past, ‘many’ meant more than 3, but today, we have NNs with hundreds or thousands of layers. Deep is subjective and changes as technology improves.

  • Output layer - the layer where predictions are made

  • For regression, the output layer will have a single neuron for each predicted value (often one)

  • For binary classification, the output layer may have one or two neurons.

  • For multi-class classification, the output layer will have as many neurons as there are classes.

2.4.3. Architecture and Hyper-parameters#

When we first create the MLP, we have to decide on the architecture (how many layers, how many neurons per layer, activation functions, etc) and the hyper-parameters (regularization, batch size, epochs).

We haven’t had to worry about training time and computational demands with the models we’ve used thus far, but NN’s complexity make these issues non-trivial.

In fitting, we can adjust two hyper-parameters that govern learning: learning rate, batch size, and number of epochs.

  • Learning Rate - determines how much the parameters are adjusted at each update

  • Batch - a subset of the training data. The training data set is partitioned into batches and the parameters are updated after each batch is processed.

  • Epoch - Once through the entire training data. The training algorithm iterates through the entire training data set numerous times, each is an epoch.

Batch Size

Training Speed

Memory Usage

Generalization

Large

Faster

Higher

Risk of Overfitting

Small

Slower

Lower

Regularized

Rule of thumb: If we increase batch size, we should also increase learning rate.

import numpy as np

import keras
from keras.models import Sequential
from keras.layers import Dense, Flatten

from sklearn.metrics import confusion_matrix, ConfusionMatrixDisplay, classification_report, accuracy_score

import matplotlib.pyplot as plt

2.5. Example: Fashion-MNIST, classifying articles of clothing#

The Fashion-MNIST datase comprises 60,000 28x28 pixel, gray-scale images of clothing items from one of the following categories.

  • 0 T-shirt/top

  • 1 Trouser

  • 2 Pullover

  • 3 Dress

  • 4 Coat

  • 5 Sandal

  • 6 Shirt

  • 7 Sneaker

  • 8 Bag

  • 9 Ankle boot

x_train.shape

(60000, 28, 28)

num_samples = 25
fig, ax = plt.subplots(5, 5, figsize = (10, 10), sharex = True, sharey= True)

for k in range(num_samples):
    i,j = int(k/5), k%5
    ax[i,j].imshow(x_train[k,:,:]/255, cmap = 'gray')
plt.show()
../_images/42890b2f0b3bd3b98316fe58b43d7afdc4d0c780a9bfc65da0b02f1524049137.png
# Normalize the data, pixel data is 0-255 (8-bit) but we want 0-1
x_train = x_train / 255.0
x_test = x_test / 255.0

# Create a vanilla neural network
model = Sequential([
    Flatten(input_shape=(28, 28)),
    Dense(128, activation='relu'),
    Dense(10, activation='softmax')
])

# Compile the model
model.compile(optimizer='adam',
              loss='sparse_categorical_crossentropy',
              metrics=['accuracy'])

# Train the model
model.fit(x_train, y_train, epochs=10, batch_size=32, validation_split=0.2)

Epoch 1/10

/Users/eatai/.pyenv/versions/3.13.1/envs/datascience/lib/python3.13/site-packages/keras/src/layers/reshaping/flatten.py:37: UserWarning: Do not pass an `input_shape`/`input_dim` argument to a layer. When using Sequential models, prefer using an `Input(shape)` object as the first layer in the model instead.
  super().__init__(**kwargs)

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 5:07 205ms/step - accuracy: 0.1250 - loss: 2.5064


  84/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 609us/step - accuracy: 0.4923 - loss: 1.4047


 178/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 571us/step - accuracy: 0.5888 - loss: 1.1415


 272/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 559us/step - accuracy: 0.6349 - loss: 1.0175


 367/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 551us/step - accuracy: 0.6638 - loss: 0.9406


 462/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 546us/step - accuracy: 0.6845 - loss: 0.8862


 554/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 547us/step - accuracy: 0.6996 - loss: 0.8462


 649/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 544us/step - accuracy: 0.7117 - loss: 0.8135


 745/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 542us/step - accuracy: 0.7215 - loss: 0.7868


 833/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 545us/step - accuracy: 0.7291 - loss: 0.7660


 925/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 545us/step - accuracy: 0.7359 - loss: 0.7471


1018/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 545us/step - accuracy: 0.7420 - loss: 0.7305


1114/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 543us/step - accuracy: 0.7475 - loss: 0.7154


1147/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 606us/step - accuracy: 0.7492 - loss: 0.7107


1242/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 600us/step - accuracy: 0.7538 - loss: 0.6978


1337/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 595us/step - accuracy: 0.7579 - loss: 0.6861


1434/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 590us/step - accuracy: 0.7618 - loss: 0.6753


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 692us/step - accuracy: 0.8174 - loss: 0.5204 - val_accuracy: 0.8486 - val_loss: 0.4296

Epoch 2/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 9s 6ms/step - accuracy: 0.8750 - loss: 0.2825


  95/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.8423 - loss: 0.4300


 190/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 532us/step - accuracy: 0.8488 - loss: 0.4218


 284/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 533us/step - accuracy: 0.8510 - loss: 0.4175


 380/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 530us/step - accuracy: 0.8529 - loss: 0.4135


 475/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 530us/step - accuracy: 0.8541 - loss: 0.4110


 570/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 530us/step - accuracy: 0.8551 - loss: 0.4091


 666/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 529us/step - accuracy: 0.8561 - loss: 0.4076


 761/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 529us/step - accuracy: 0.8568 - loss: 0.4062


 857/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 528us/step - accuracy: 0.8571 - loss: 0.4052


 951/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 529us/step - accuracy: 0.8574 - loss: 0.4042


1042/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 531us/step - accuracy: 0.8577 - loss: 0.4032


1136/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 531us/step - accuracy: 0.8578 - loss: 0.4025


1232/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 531us/step - accuracy: 0.8579 - loss: 0.4018


1328/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 530us/step - accuracy: 0.8581 - loss: 0.4011


1425/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 530us/step - accuracy: 0.8583 - loss: 0.4004


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 604us/step - accuracy: 0.8621 - loss: 0.3878 - val_accuracy: 0.8608 - val_loss: 0.3761

Epoch 3/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 8s 6ms/step - accuracy: 0.8750 - loss: 0.3307


  96/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 529us/step - accuracy: 0.8681 - loss: 0.3795


 187/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 540us/step - accuracy: 0.8698 - loss: 0.3675


 280/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 540us/step - accuracy: 0.8698 - loss: 0.3651


 376/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 536us/step - accuracy: 0.8697 - loss: 0.3639


 473/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 531us/step - accuracy: 0.8700 - loss: 0.3622


 569/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 530us/step - accuracy: 0.8702 - loss: 0.3608


 666/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 528us/step - accuracy: 0.8703 - loss: 0.3594


 762/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 528us/step - accuracy: 0.8704 - loss: 0.3585


 859/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 527us/step - accuracy: 0.8705 - loss: 0.3577


 954/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 527us/step - accuracy: 0.8707 - loss: 0.3568


1048/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 528us/step - accuracy: 0.8709 - loss: 0.3559


1135/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 532us/step - accuracy: 0.8711 - loss: 0.3552


1223/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 535us/step - accuracy: 0.8712 - loss: 0.3546


1313/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 536us/step - accuracy: 0.8713 - loss: 0.3540


1407/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 536us/step - accuracy: 0.8714 - loss: 0.3535


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 610us/step - accuracy: 0.8724 - loss: 0.3469 - val_accuracy: 0.8721 - val_loss: 0.3569

Epoch 4/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 7s 5ms/step - accuracy: 0.8750 - loss: 0.3239


  95/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 536us/step - accuracy: 0.8855 - loss: 0.3232


 192/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 528us/step - accuracy: 0.8799 - loss: 0.3310


 288/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 526us/step - accuracy: 0.8785 - loss: 0.3313


 384/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 526us/step - accuracy: 0.8782 - loss: 0.3312


 480/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 525us/step - accuracy: 0.8787 - loss: 0.3293


 576/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 525us/step - accuracy: 0.8795 - loss: 0.3272


 671/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 525us/step - accuracy: 0.8801 - loss: 0.3259


 767/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 525us/step - accuracy: 0.8805 - loss: 0.3248


 863/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 525us/step - accuracy: 0.8809 - loss: 0.3240


 961/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 524us/step - accuracy: 0.8810 - loss: 0.3236


1057/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 524us/step - accuracy: 0.8812 - loss: 0.3233


1148/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 526us/step - accuracy: 0.8813 - loss: 0.3231


1243/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 526us/step - accuracy: 0.8815 - loss: 0.3228


1339/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 526us/step - accuracy: 0.8815 - loss: 0.3226


1435/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 526us/step - accuracy: 0.8816 - loss: 0.3225


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 599us/step - accuracy: 0.8822 - loss: 0.3203 - val_accuracy: 0.8750 - val_loss: 0.3516

Epoch 5/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 7s 5ms/step - accuracy: 0.7812 - loss: 0.4199


  97/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 525us/step - accuracy: 0.8813 - loss: 0.2982


 193/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 524us/step - accuracy: 0.8861 - loss: 0.2940


 289/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 523us/step - accuracy: 0.8870 - loss: 0.2966


 387/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 521us/step - accuracy: 0.8870 - loss: 0.2995


 484/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 521us/step - accuracy: 0.8869 - loss: 0.3018


 581/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 521us/step - accuracy: 0.8867 - loss: 0.3033


 678/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8869 - loss: 0.3039


 774/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8870 - loss: 0.3042


 871/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8871 - loss: 0.3045


 968/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8871 - loss: 0.3048


1065/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8871 - loss: 0.3048


1162/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8872 - loss: 0.3047


1257/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8872 - loss: 0.3046


1353/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8873 - loss: 0.3046


1449/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.8873 - loss: 0.3045


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 599us/step - accuracy: 0.8880 - loss: 0.3034 - val_accuracy: 0.8804 - val_loss: 0.3408

Epoch 6/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 9s 7ms/step - accuracy: 0.9375 - loss: 0.1836


  91/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 561us/step - accuracy: 0.8982 - loss: 0.2788


 185/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 546us/step - accuracy: 0.8953 - loss: 0.2865


 279/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 542us/step - accuracy: 0.8956 - loss: 0.2869


 375/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.8957 - loss: 0.2875


 470/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 535us/step - accuracy: 0.8958 - loss: 0.2878


 567/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 532us/step - accuracy: 0.8959 - loss: 0.2879


 662/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 531us/step - accuracy: 0.8960 - loss: 0.2880


 756/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 532us/step - accuracy: 0.8960 - loss: 0.2878


 839/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 539us/step - accuracy: 0.8959 - loss: 0.2878


 933/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 539us/step - accuracy: 0.8958 - loss: 0.2878


1031/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.8958 - loss: 0.2877


1126/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 536us/step - accuracy: 0.8958 - loss: 0.2875


1217/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.8958 - loss: 0.2874


1312/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.8958 - loss: 0.2873


1406/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.8958 - loss: 0.2872


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.8957 - loss: 0.2872


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 614us/step - accuracy: 0.8945 - loss: 0.2883 - val_accuracy: 0.8815 - val_loss: 0.3330

Epoch 7/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 7s 5ms/step - accuracy: 0.8125 - loss: 0.4398


  94/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 542us/step - accuracy: 0.8948 - loss: 0.2732


 188/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.8960 - loss: 0.2699


 282/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 536us/step - accuracy: 0.8966 - loss: 0.2697


 376/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 535us/step - accuracy: 0.8970 - loss: 0.2697


 470/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 535us/step - accuracy: 0.8971 - loss: 0.2703


 563/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 536us/step - accuracy: 0.8974 - loss: 0.2705


 657/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 536us/step - accuracy: 0.8976 - loss: 0.2708


 753/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 535us/step - accuracy: 0.8979 - loss: 0.2708


 847/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 534us/step - accuracy: 0.8980 - loss: 0.2711


 942/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 534us/step - accuracy: 0.8980 - loss: 0.2714


1018/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 543us/step - accuracy: 0.8979 - loss: 0.2716


1111/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 543us/step - accuracy: 0.8980 - loss: 0.2717


1205/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 543us/step - accuracy: 0.8981 - loss: 0.2716


1300/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 542us/step - accuracy: 0.8981 - loss: 0.2716


1395/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 541us/step - accuracy: 0.8982 - loss: 0.2715


1491/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 540us/step - accuracy: 0.8982 - loss: 0.2715


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 616us/step - accuracy: 0.8989 - loss: 0.2716 - val_accuracy: 0.8847 - val_loss: 0.3234

Epoch 8/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 8s 6ms/step - accuracy: 0.9375 - loss: 0.1962


  94/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 541us/step - accuracy: 0.9026 - loss: 0.2717


 189/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 534us/step - accuracy: 0.9023 - loss: 0.2659


 284/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 533us/step - accuracy: 0.9025 - loss: 0.2637


 379/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 531us/step - accuracy: 0.9030 - loss: 0.2612


 469/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.9033 - loss: 0.2603


 558/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 542us/step - accuracy: 0.9034 - loss: 0.2600


 647/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 545us/step - accuracy: 0.9034 - loss: 0.2599


 737/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 547us/step - accuracy: 0.9034 - loss: 0.2597


 831/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 545us/step - accuracy: 0.9034 - loss: 0.2596


 926/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 544us/step - accuracy: 0.9034 - loss: 0.2595


1023/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 541us/step - accuracy: 0.9034 - loss: 0.2596


1119/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 540us/step - accuracy: 0.9034 - loss: 0.2597


1215/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 539us/step - accuracy: 0.9035 - loss: 0.2597


1312/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 537us/step - accuracy: 0.9035 - loss: 0.2597


1410/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 535us/step - accuracy: 0.9035 - loss: 0.2598


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 608us/step - accuracy: 0.9024 - loss: 0.2623 - val_accuracy: 0.8842 - val_loss: 0.3244

Epoch 9/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 8s 5ms/step - accuracy: 0.9062 - loss: 0.2110


  96/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 530us/step - accuracy: 0.8964 - loss: 0.2571


 193/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 523us/step - accuracy: 0.9002 - loss: 0.2548


 291/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.9018 - loss: 0.2532


 389/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 518us/step - accuracy: 0.9026 - loss: 0.2519


 487/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 517us/step - accuracy: 0.9032 - loss: 0.2512


 585/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 516us/step - accuracy: 0.9035 - loss: 0.2511


 683/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 515us/step - accuracy: 0.9038 - loss: 0.2506


 782/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 514us/step - accuracy: 0.9041 - loss: 0.2501


 882/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 513us/step - accuracy: 0.9043 - loss: 0.2498


 981/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 512us/step - accuracy: 0.9045 - loss: 0.2497


1080/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 512us/step - accuracy: 0.9045 - loss: 0.2500


1180/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 511us/step - accuracy: 0.9046 - loss: 0.2502


1279/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 511us/step - accuracy: 0.9046 - loss: 0.2503


1377/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 511us/step - accuracy: 0.9047 - loss: 0.2504


1473/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 512us/step - accuracy: 0.9048 - loss: 0.2504


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 584us/step - accuracy: 0.9063 - loss: 0.2507 - val_accuracy: 0.8904 - val_loss: 0.3164

Epoch 10/10

   1/1500 ━━━━━━━━━━━━━━━━━━━━ 7s 5ms/step - accuracy: 0.9688 - loss: 0.1049


  98/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 518us/step - accuracy: 0.9133 - loss: 0.2170


 196/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 516us/step - accuracy: 0.9140 - loss: 0.2204


 294/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 515us/step - accuracy: 0.9136 - loss: 0.2245


 389/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 518us/step - accuracy: 0.9126 - loss: 0.2285


 487/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 518us/step - accuracy: 0.9119 - loss: 0.2310


 586/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 516us/step - accuracy: 0.9114 - loss: 0.2333


 685/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 515us/step - accuracy: 0.9110 - loss: 0.2350


 783/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 515us/step - accuracy: 0.9107 - loss: 0.2362


 876/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 517us/step - accuracy: 0.9106 - loss: 0.2369


 967/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 521us/step - accuracy: 0.9105 - loss: 0.2374


1064/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.9105 - loss: 0.2379


1158/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 522us/step - accuracy: 0.9104 - loss: 0.2382


1256/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 521us/step - accuracy: 0.9104 - loss: 0.2385


1354/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 521us/step - accuracy: 0.9103 - loss: 0.2387


1452/1500 ━━━━━━━━━━━━━━━━━━━━ 0s 520us/step - accuracy: 0.9103 - loss: 0.2388


1500/1500 ━━━━━━━━━━━━━━━━━━━━ 1s 592us/step - accuracy: 0.9098 - loss: 0.2410 - val_accuracy: 0.8884 - val_loss: 0.3171

<keras.src.callbacks.history.History at 0x120ecbe00>

model.layers

[<Flatten name=flatten, built=True>,
 <Dense name=dense, built=True>,
 <Dense name=dense_1, built=True>]

model.layers[1].get_weights()

[array([[-0.0713469 ,  0.03250205,  0.06500132, ...,  0.27670878,
         -0.18487853, -0.08517335],
        [-0.05822118, -0.09768099,  0.07717109, ...,  0.41678566,
         -0.01116703, -0.11538623],
        [-0.05299133,  0.10303343, -0.09143736, ...,  0.17697497,
         -0.11204378, -0.11445503],
        ...,
        [-0.18283023, -0.05082365, -0.15573852, ...,  0.4768174 ,
         -0.13417463, -0.1478706 ],
        [-0.23174927, -0.29934692,  0.14626086, ...,  0.5767144 ,
         -0.3227887 , -0.11754484],
        [-0.22875336, -0.20766266, -0.07919479, ...,  0.42055562,
         -0.42195907, -0.07124062]], shape=(784, 128), dtype=float32),
 array([ 0.33520427,  0.41476032,  0.42854255,  0.26456   ,  0.28423107,
         0.4619906 , -0.01085375, -0.01410234,  0.46816376,  0.04695842,
         0.16199604,  0.1178596 , -0.15440884,  0.26269406, -0.02273692,
         0.39012593,  0.11480645, -0.16267306,  0.01186102, -0.20373592,
         0.77516353,  0.28331184,  0.04801618, -0.01358667,  0.27781582,
        -0.30025145, -0.01313267, -0.02819712,  0.05266671, -0.01129104,
         0.3718213 , -0.06276885,  0.07143743, -0.42740637,  0.27966768,
         0.5643312 ,  0.13939717, -0.02660735,  0.25482723,  0.15903096,
         0.02761725, -0.11521526, -0.018591  , -0.08635442,  0.1875941 ,
        -0.24020974,  0.33598614,  0.14443065,  0.16586447,  0.31778356,
        -0.01498642,  0.92979336, -0.01211132, -0.10277095, -0.1661265 ,
         0.00524938,  0.10501956, -0.11736097, -0.05673584,  0.83130604,
        -0.16295753,  0.4000649 , -0.28859657,  0.11708748,  0.2133803 ,
         0.5311273 , -0.07117038,  0.36213043,  0.09919515,  0.04499178,
        -0.06633466, -0.00488194, -0.06314942,  0.12584068,  0.316148  ,
         0.4582312 ,  0.26652548,  0.32099682,  0.27829206,  0.35091612,
         0.34667146,  0.51486707,  0.4186107 ,  0.12076598,  0.28654033,
         0.383458  ,  0.8813752 , -0.00307724,  0.44035587,  0.24539825,
         0.08246749,  0.34919336, -0.18238382, -0.0148306 , -0.42604852,
        -0.17117037,  0.29033217, -0.26033685,  0.19798407,  0.08194257,
        -0.01106311,  0.2647324 , -0.21065266,  0.45927092, -0.06942318,
        -0.23241717, -0.01085974,  0.51232344,  0.529505  ,  0.3539233 ,
        -0.01077797, -0.13007548, -0.01885176, -0.10258822,  0.37626743,
         0.24545035,  0.23259574, -0.03035248,  0.39216578,  0.68170875,
        -0.01603815,  0.38373974,  0.37374336,  0.31222183, -0.39119828,
         0.3422284 ,  0.01534443, -0.12235121], dtype=float32)]

weights = model.layers[1].get_weights()[0]
biases = model.layers[1].get_weights()[1]

print(weights.shape)
print(biases.shape)

(784, 128)
(128,)

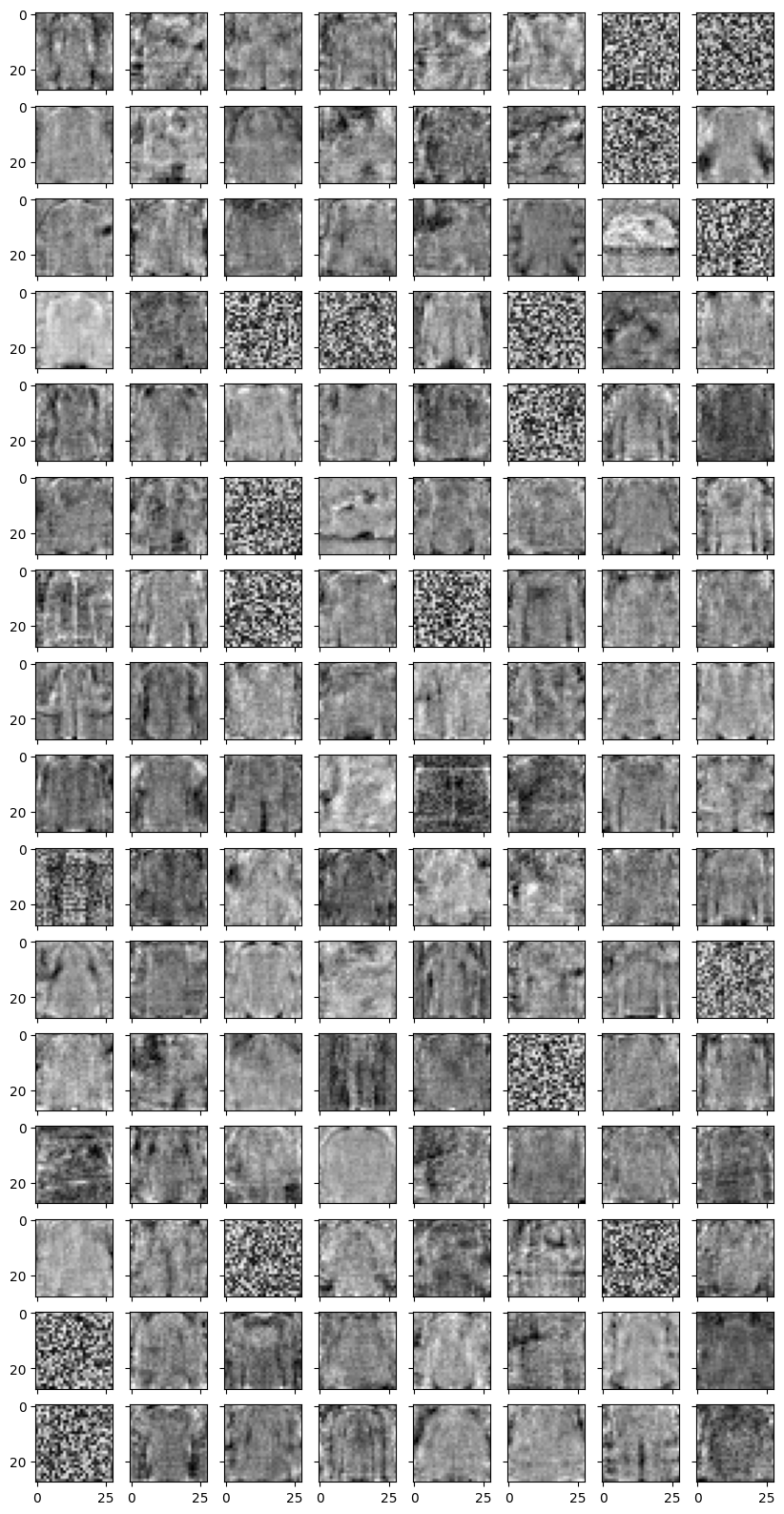

fig, ax = plt.subplots(16, 8, figsize = (10, 20), sharex = True, sharey= True)

for k, weight in enumerate(weights.transpose()):
    i,j = int(k/8), k%8
    ax[i,j].imshow(weight.reshape(28,28), cmap = 'gray')
../_images/e80eb6e4c87388168e2acc9112bd1037d333e284d9e76ee8e7325c2e82f28a14.png
# Evaluate the model on the test set
y_pred = np.argmax(model.predict(x_test), axis=1)
y_train_pred = np.argmax(model.predict(x_train), axis=1)

  1/313 ━━━━━━━━━━━━━━━━━━━━ 4s 15ms/step


201/313 ━━━━━━━━━━━━━━━━━━━━ 0s 251us/step


313/313 ━━━━━━━━━━━━━━━━━━━━ 0s 286us/step

   1/1875 ━━━━━━━━━━━━━━━━━━━━ 10s 5ms/step


 239/1875 ━━━━━━━━━━━━━━━━━━━━ 0s 210us/step


 487/1875 ━━━━━━━━━━━━━━━━━━━━ 0s 206us/step


 736/1875 ━━━━━━━━━━━━━━━━━━━━ 0s 204us/step


 983/1875 ━━━━━━━━━━━━━━━━━━━━ 0s 204us/step


1228/1875 ━━━━━━━━━━━━━━━━━━━━ 0s 204us/step


1457/1875 ━━━━━━━━━━━━━━━━━━━━ 0s 206us/step


1681/1875 ━━━━━━━━━━━━━━━━━━━━ 0s 209us/step


1875/1875 ━━━━━━━━━━━━━━━━━━━━ 0s 212us/step

labels = ['T-shirt/top', 'Trouser', 'Pullover', 'Dress', 'Coat',
               'Sandal', 'Shirt', 'Sneaker', 'Bag', 'Ankle boot']

# Create a confusion matrix
cm = confusion_matrix(y_test, y_pred)
ConfusionMatrixDisplay(cm, display_labels = labels).plot()

plt.xticks(rotation = 60)
plt.show()
../_images/dea17cb740a47b3fac10eef5860d9920ea40b8e52d0fa4635123191b0044d50a.png
print('TRAINING REPORT:')
print(classification_report(y_train, y_train_pred))

print('TESTING REPORT:')
print(classification_report(y_test, y_pred))

TRAINING REPORT:
              precision    recall  f1-score   support

           0       0.81      0.93      0.87      6000
           1       0.99      0.99      0.99      6000
           2       0.85      0.84      0.85      6000
           3       0.92      0.93      0.92      6000
           4       0.84      0.86      0.85      6000
           5       1.00      0.96      0.98      6000
           6       0.82      0.69      0.75      6000
           7       0.96      0.97      0.97      6000
           8       0.98      0.99      0.99      6000
           9       0.96      0.98      0.97      6000

    accuracy                           0.91     60000
   macro avg       0.91      0.91      0.91     60000
weighted avg       0.91      0.91      0.91     60000

TESTING REPORT:
              precision    recall  f1-score   support

           0       0.78      0.89      0.83      1000
           1       0.99      0.97      0.98      1000
           2       0.79      0.78      0.79      1000
           3       0.88      0.89      0.89      1000
           4       0.80      0.81      0.80      1000
           5       0.99      0.93      0.96      1000
           6       0.73      0.63      0.68      1000
           7       0.93      0.96      0.95      1000
           8       0.97      0.97      0.97      1000
           9       0.94      0.96      0.95      1000

    accuracy                           0.88     10000
   macro avg       0.88      0.88      0.88     10000
weighted avg       0.88      0.88      0.88     10000
Contents
